Manual
Read the manual below and
watch our tutorials on Youtube
The manual guides you through the different settings for the vest and the electronic collar.
Simple and instructive tutorials on Youtube show you how to update the software for the electronic collar, how to pair the Alert Vest with the Swanholm Sense app
and more
To our YouTube channel

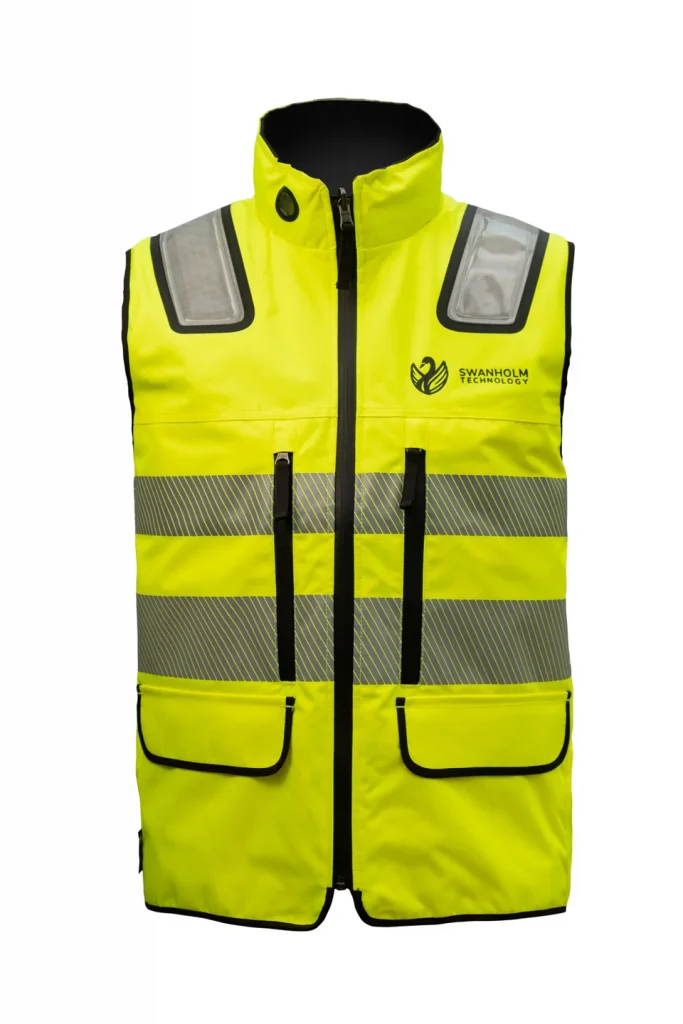

Alert Vest – Manual
Activate on – 1 click
Lights (disabled if the vest is delivered without lights)
2 clicks – lights on
2 clicks – flashing lights
2 clicks – rhythmically flashing lights
1 long click (hold for 2 seconds) – the lights turn off (but the vest is still on).
Lights that turn on / off automatically when you get into or out of a work vehicle can be set in the app. This is triggered by AI with a recognition rate of about 75%.
For safety reasons, the lights will not work if the electronic collar buttons are disconnected from the vest collar buttons, but all other functions will work normally.
Shutdown – 1 long click 5 seconds

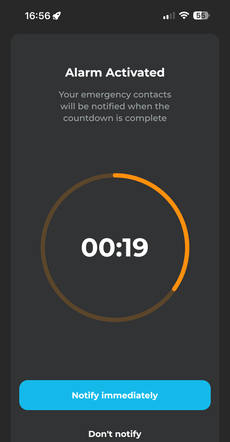

Alarm – 5 clicks to trigger the alarm manually (max. half a second between clicks). 30 second countdown starts.
Note:
The alarm will not be sent if you cancel the alarm during the countdown in the app.
No alarm will be sent if the vest is not connected to a smartphone with a SIM card.
The fall alarm is automatically triggered by the AI in the vest’s electronics.
The timer alarm is set in the Sense app.
Battery status
The LED light in the button shows the battery status every 10 seconds.
The color indicates the battery status:
Green: above 40
Blue: between 20% – 40
Red: below 20%.
When the vest is activated, you can click the button once to see the battery percentage.
The battery charge indicator is automatically calibrated during the first 3 charging cycles.
During charging, the following light indications are displayed:
Green light: above 90%.
Blue light: 60-90%
Red light: 0% – 60
SOUND
ON: low-to-high sound signal.
OFF: high-to-low sound signal.
ONE BEEP: Bluetooth connection established between phone and vest or lights off.
ONE LOW BEEP: Bluetooth connection lost.
SILENT MODE
When activated, press and hold the button for 4 seconds until you hear a longer beep.
To deactivate silent mode, turn off the electronic collar and then turn it on by pressing the button for 4 seconds.
These settings can also be made in the Sense app.
